Petzl Coeur Bolt Steel Anchor for Rock Climbing, Wall Climbing

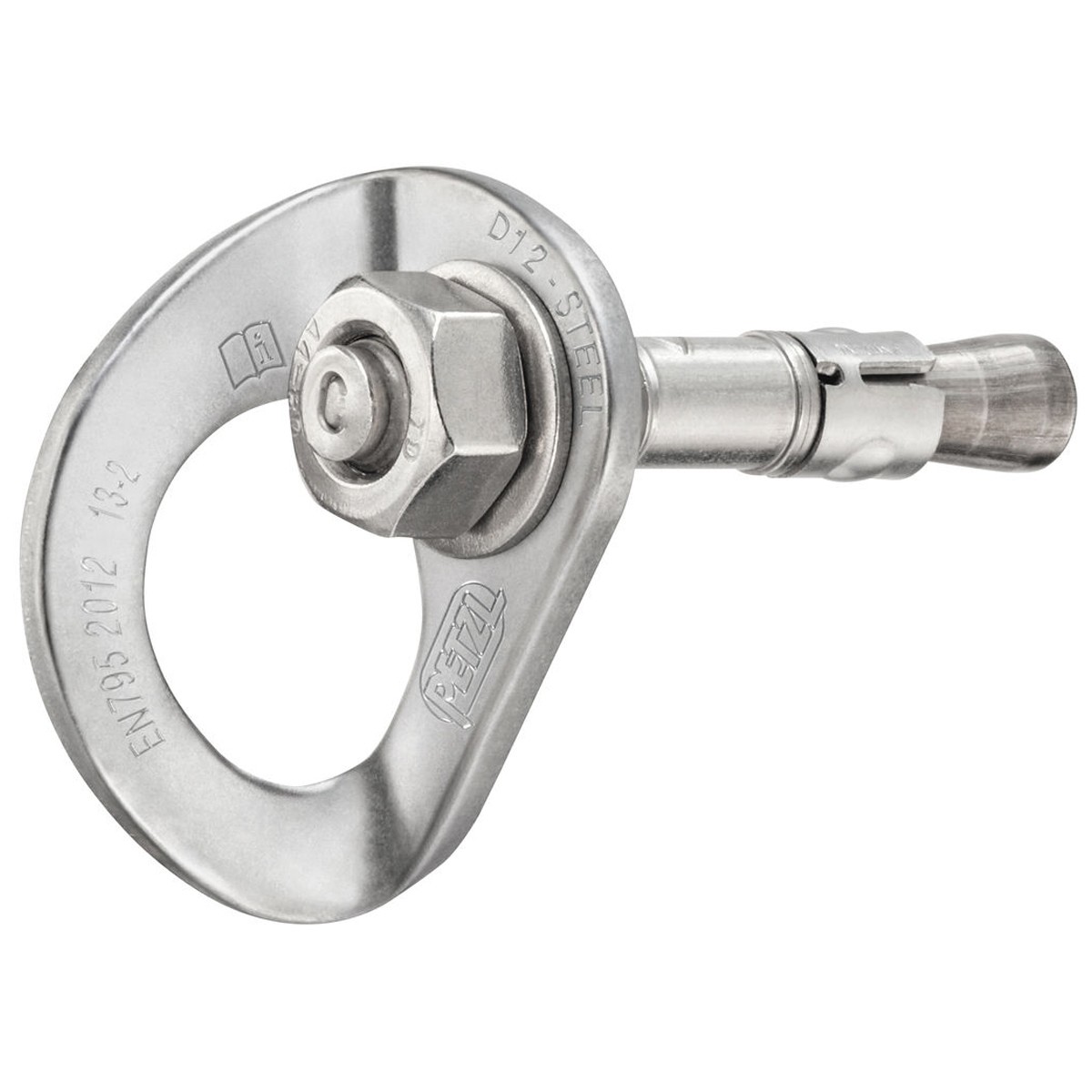

• The COEUR BOLT STEEL is a standard steel anchor made up of a COEUR STEEL hanger, a bolt, and a nut.
• It is designed for interior use or non-permanent installations.
• It’s easy to clip the wide, ergonomic connection point facilitates carabiner clipping and the hanger anti-rotation system textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use.

0.14 Kg

p36ba-12-p36ba-10

Indoor

1 cm

Petzl

P36BA 12/ P36BA 10

10.5*1.2*1.2

• Brand: Petzl
• Model No: P36BA 12
• Diameter : 10 mm / 12 mm
• Weight: 110 g / 135 g
• Material: Steel
• Drilling Diameter: 10 mm / 12 mm
• Total Bolt Length: 85 mm / 105 mm
• Shear Strength in 50 MPa concrete: 23 kN / 25 kN
• Pull-Out Strength in concrete 50 MPa: 15 kN / 18 kN

IP20
