Item specifics

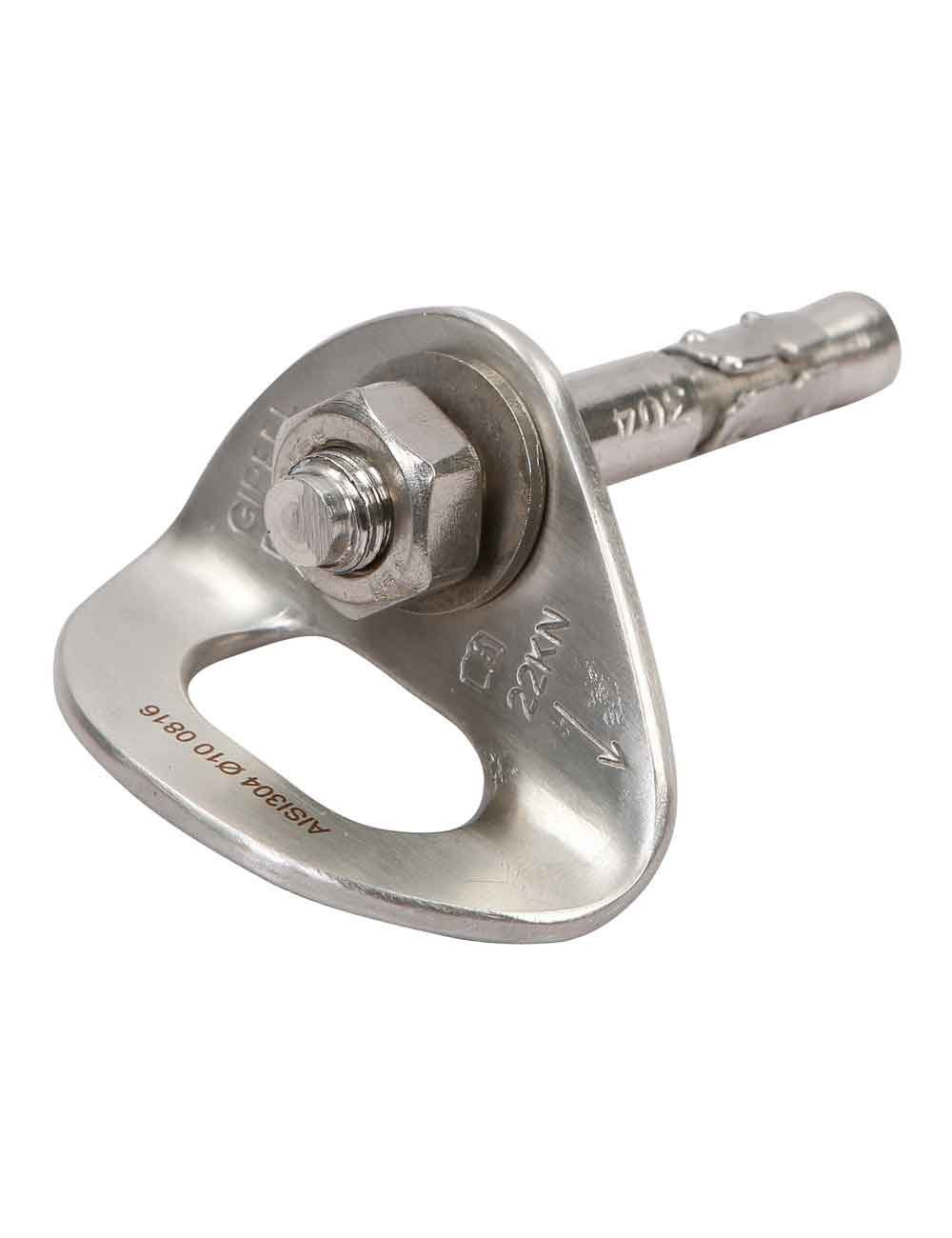

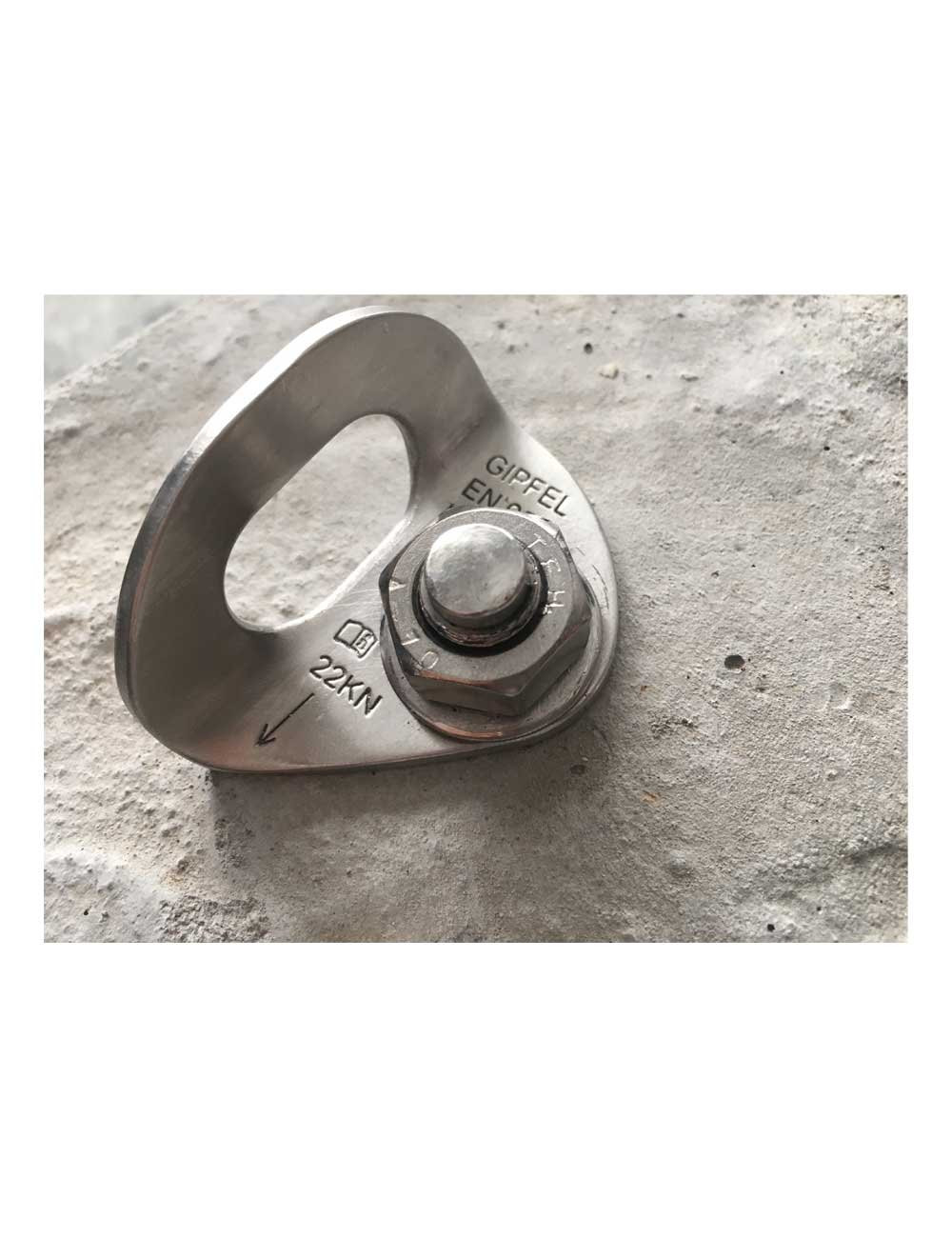

- This hanger features chamfered edges of the eye hole to minimize wear on a carabiner. The eye hole itself is large enough to accommodate two carabiners.
- Choose the bolt size carefully depending upon the strength of the base rock material. If the rock is soft or has an uneven composition such as Sandstone and Limestone, then any rock anchor, including ours will not be strong enough to endure heavy loading.
- This anchor is not recommended for use in coastal areas because it may not last as long as it normally should. For areas within 100 km of coastline, we recommend the anchors must be made in marine-grade Stainless Steel.
- If you are combining our hangers with your own bolts, ensure that they are made from the same grade of metal.
- Each hanger is tested at a proof load of 8kN before shipping. You will be able to see a very small indentation on the side of the eyehole. That is because it was tested in our lab for your safety.
- Brand: Gipfel
- Model No: B07115XT2Q
- Color: Silver
- Material: Stainless Steel 304
- Minimum Breaking Strength: 25 kN
- Cutting Strength (Radial Load) in 50MPA test concrete block: 25 kN
- Pull-out strength (Axial load) in 50MPA test concrete block: 15 kN
- Certification : EN959:2007, CE3076
- Bore diameter : 10 mm
